Embedded Ceiling Sensor

Ceiling Embedding type Sensor

Embedded Ceiling Sensor

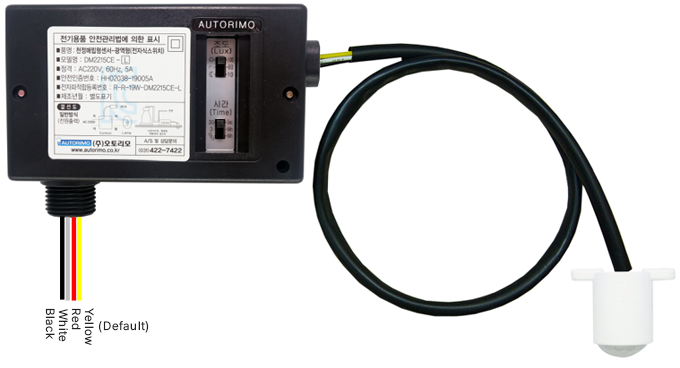

Ceiling Embedding type Sensor DM2215CE-L / DM2215CE-S / DM2215CE-I

Single Relay(1-contact) 5A

Product Description

Installed in the ceiling, the sensor has minimal exposed areas, providing a clean and aesthetically pleasing appearance.
With a safety certification specification of 220V 5A, it is possible to choose the sensor head type based on the detection range.
When installed on the upper part of the toilet stalls, it allows for individual control of lights. In cases where the entire restroom uses a common light, it can be linked with the sensor near the entrance. This ensures that the common light does not turn off even when someone is present at the toilet stalls, providing comfort for indoor use of the restroom.

User-configurable Sensor Heads

The sensor head of the Embedded Ceiling Sensor product line comes with the default L33H (L-type). The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.

① Sensor Head Model Selection
② Ceiling Mounting Options
③ Detection Range Customization (L/S/I)

Selectable Options

L33H

For body lengths of 33mm, use with finishing materials such as hardboard or resin material with a thickness of 5mm or less.

L80H

A long-type head extended up to 80mm to allow installation even in cases of thick ceiling finishing materials.

Rubber Guide

Rubber Character (Presence/Absence) Selection

Front/Back Fixed Rings

Deco (optional)

L type – Wide Areas

Detection Angle	120°
Linear Detection Range	max 10m
Horizontal Detection Distance (H:3m)	max ⌀8~10m
Applications	Meeting rooms, research labs, etc.

S type - Small Areas

Detection Angle	60°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀5~6m
Applications	Small Areas like Restrooms

AIM810HD

Sensor head that can be easily buried and installed by using spring brackets after drilling a Φ45mm hole.

spring brackets

The L-type can block passage-side detection by adding a front shutter.

I type - individuals

Detection Angle	30°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀3~4m
Applications	Confined spaces used by individuals

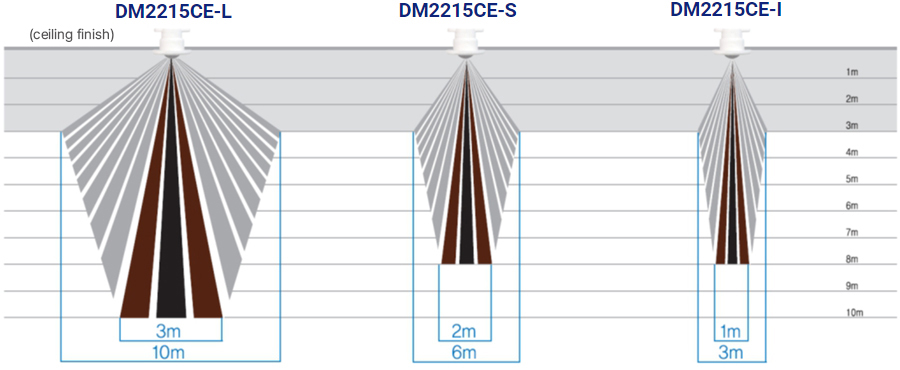

Field Of View

DM2215CE-L
Detects a wide area with a diameter of 22Ø. Ideal for broad-scale lighting control in areas such as corridors, lobbies, and research labs.
DM2215CE-S
Highly sensitive detection in narrow areas with a diameter of 15Ø. A suitable product for controlling lighting in small spaces like narrow restrooms and entryways.
DM2215CE-I
Equipped with a hood that restricts unnecessary signals in the lens area, blocking signals outside the detection range. Perfect for various purposes, it can be widely applied, especially in very narrow spaces like toilet stalls and office seats, allowing recognition of user presence.

Functions

Design Examples

Restrooms - Micom Occupancy Sensor + Ceiling Embedding type Sensor (I type)

The main corridor lighting is controlled by a Micom Occupancy Sensor, while the light on the top of the toilet stall is individually controlled using a Ceiling Embedding type Sensor.

Wiring Diagram

Specifications

Item	DM2215CE-L	DM2215CE-S
Certification standard	220V 5A
Input Voltage	220V AC 60Hz
Lens Diameter	22Ø	15Ø
PIR	4 Elements	2 Elements

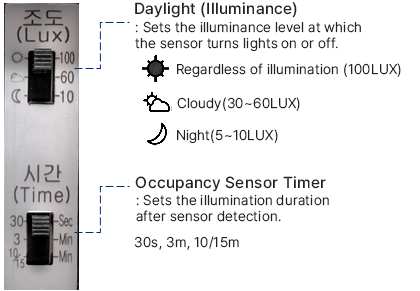

Daylight Setting	Regardless of illumination (100LUX), Cloudy(30~60LUX), Night(5~10LUX) 3 levels
Occupancy Sensor Time Delay	30s, 3m, 10/15m
Size	Sensor head (L33H) : ⌀27mm, 33mm(H), support 47mm Controller : 67(W) X 30(H) X 113(L) mm
