Micom Light Sensor Switch DM2215PC-MT

•

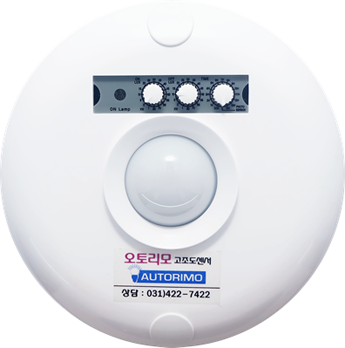

  Basic Type

•

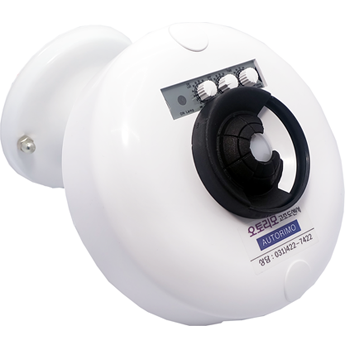

  Adjustable Angle Type (Option) with Sensor Cover

Product Description

• According to the external lighting conditions such as sunrise, sunset, and weather (clear or cloudy), the light lines are controlled, and this system can be applied to streetlights, garden lights, and signboards as well.
• On bright sunny days when the sunlight is abundant, if the lights on the window-side lines are unnecessarily turned on, they are automatically turned off, and when it gets darker, they are automatically turned on.
• With timer settings, after the lights are turned on due to darkness, automatic shutdown according to the set time is possible, making it convenient for use in offices, buildings, etc. For applications like streetlights and signboards that should operate based solely on light intensity, they can be configured to operate only with sensors (PHOTO SENSOR).

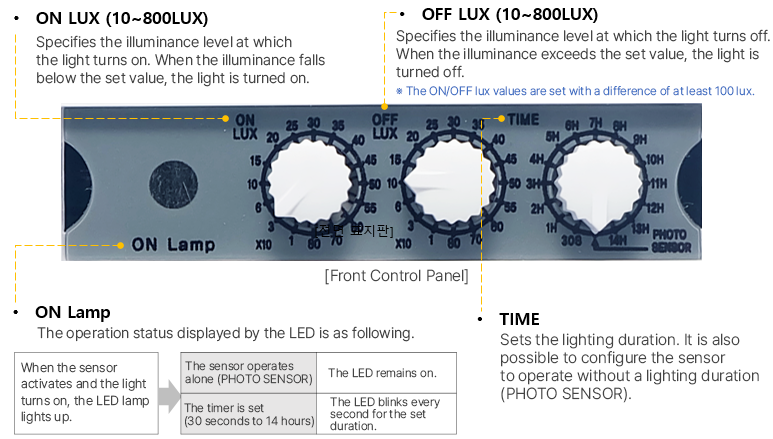

Structure and Functions

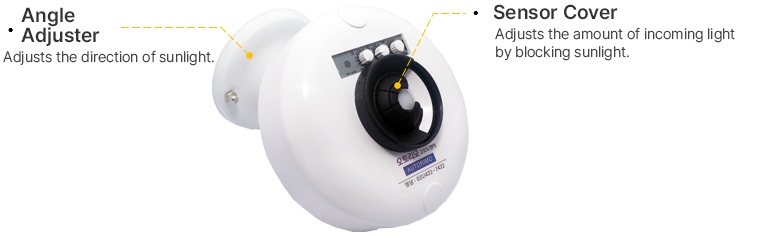

Sensor Cover & Angle Adjuster Usage

• Allows adjustment of the direction, angle, and intensity of natural light based on the environmental conditions at the installation site, enabling more precise control of lighting on/off. In this case, the scale values for ON and OFF lux may differ from actual values.

---

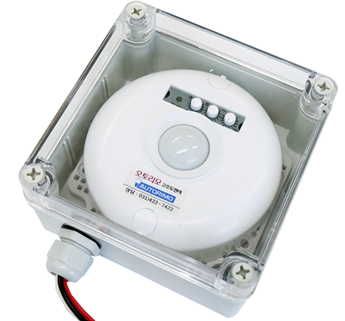

Outdoor Light Sensor SwitchDM2215PC-MT-OT

Product Description

• It is suitable for outdoor signage and streetlight control, capable of recognizing cloudy and clear days for on/off control. It is adjustable and designed to not be affected by ambient indirect light, enabling automatic on/off in any environment.
• It also allows for automatic off after a certain period following activation, facilitating off control even at unwanted late hours.
• With high-capacity load switching capability, it can handle loads up to 3KW.

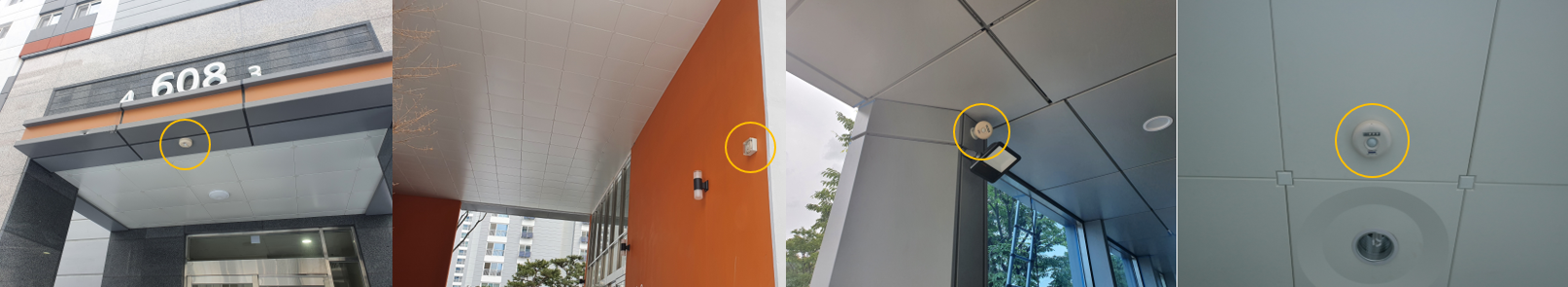

Installation Examples

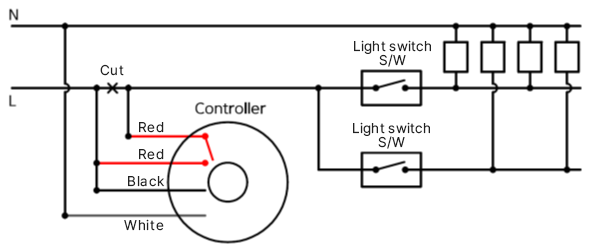

Wiring Diagram

Specifications
