Bluetooth Micom Embedded Ceiling Sensor DM2215CE-MSB

Product Description

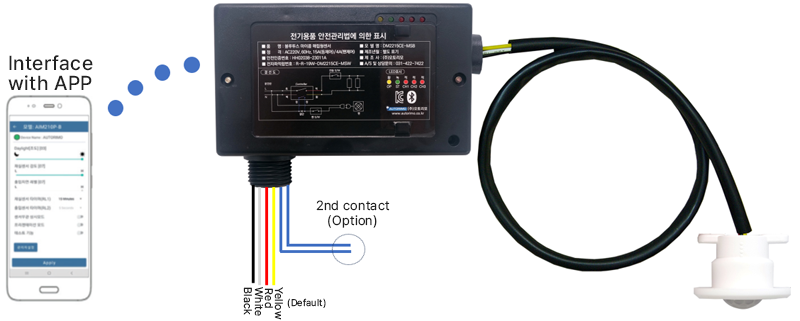

Utilizing a wireless setup method, users can install a sensor control application on their smartphones and connect to the sensor via Bluetooth communication. The installed application allows configuration of sensor sensitivity, timers, lighting conditions, and other functions. With no need to physically access the sensor, which may be installed at a high ceiling, the convenience and safety of management are significantly enhanced.
When needed, you can add a secondary contact, allowing the fan to be turned off by a secondary timer after the lights are turned off. Additionally, if there is no activity indoors during a specified period, the contact signal can be transmitted to IoT devices or PLC for utilization. (Optional)

User-configurable Sensor Heads

The sensor head of the Embedded Ceiling Sensor product line comes with the default L33H (L-type). The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.

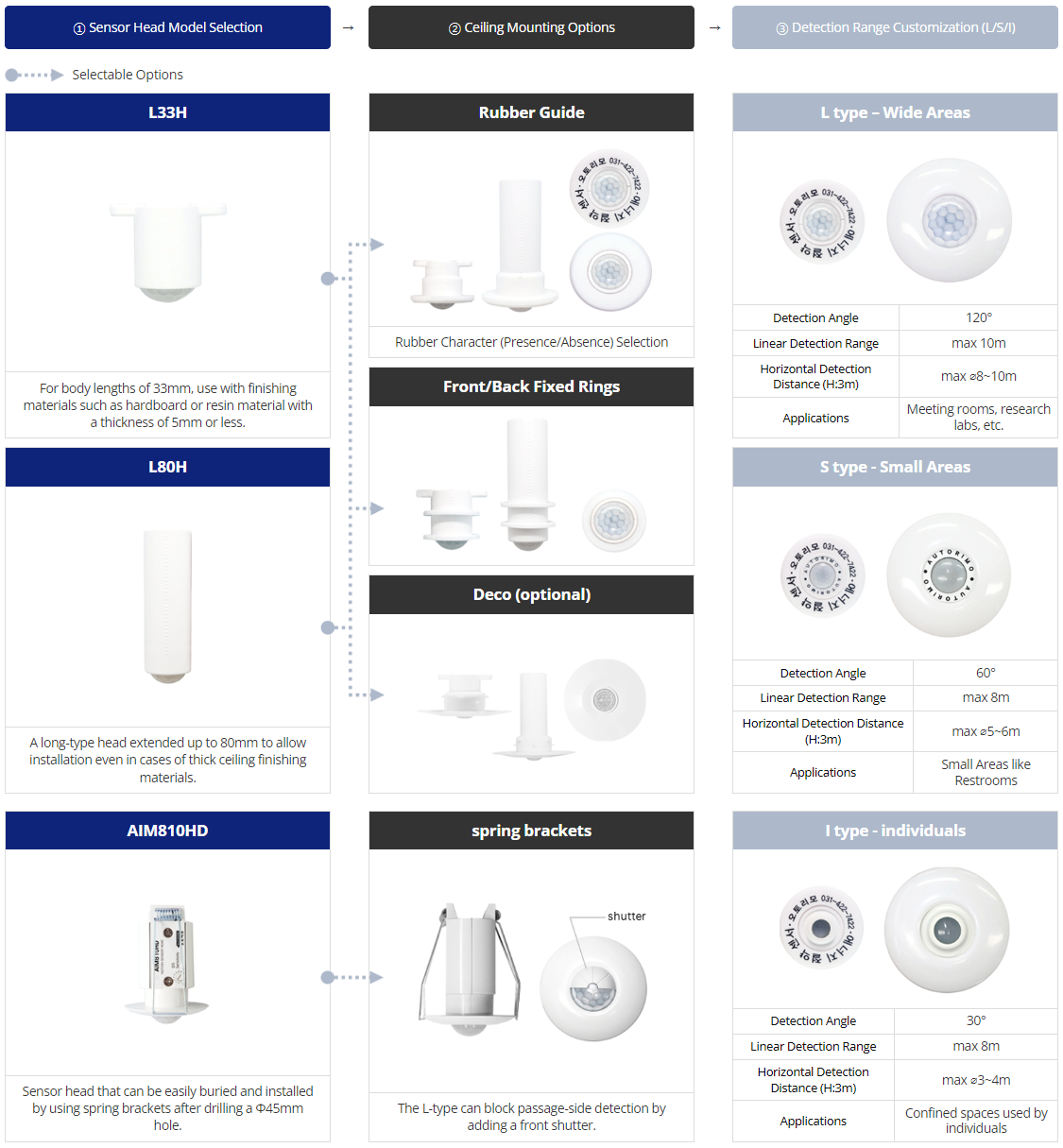

① Sensor Head Model Selection
② Ceiling Mounting Options
③ Detection Range Customization (L/S/I)

Selectable Options

L33H

For body lengths of 33mm, use with finishing materials such as hardboard or resin material with a thickness of 5mm or less.

L80H

A long-type head extended up to 80mm to allow installation even in cases of thick ceiling finishing materials.

Rubber Guide

Rubber Character (Presence/Absence) Selection

Front/Back Fixed Rings

Deco (optional)

L type – Wide Areas

Detection Angle	120°
Linear Detection Range	max 10m
Horizontal Detection Distance (H:3m)	max ⌀8~10m
Applications	Meeting rooms, research labs, etc.

S type - Small Areas

Detection Angle	60°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀5~6m
Applications	Small Areas like Restrooms

AIM810HD

Sensor head that can be easily buried and installed by using spring brackets after drilling a Φ45mm hole.

spring brackets

The L-type can block passage-side detection by adding a front shutter.

I type - individuals

Detection Angle	30°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀3~4m
Applications	Confined spaces used by individuals

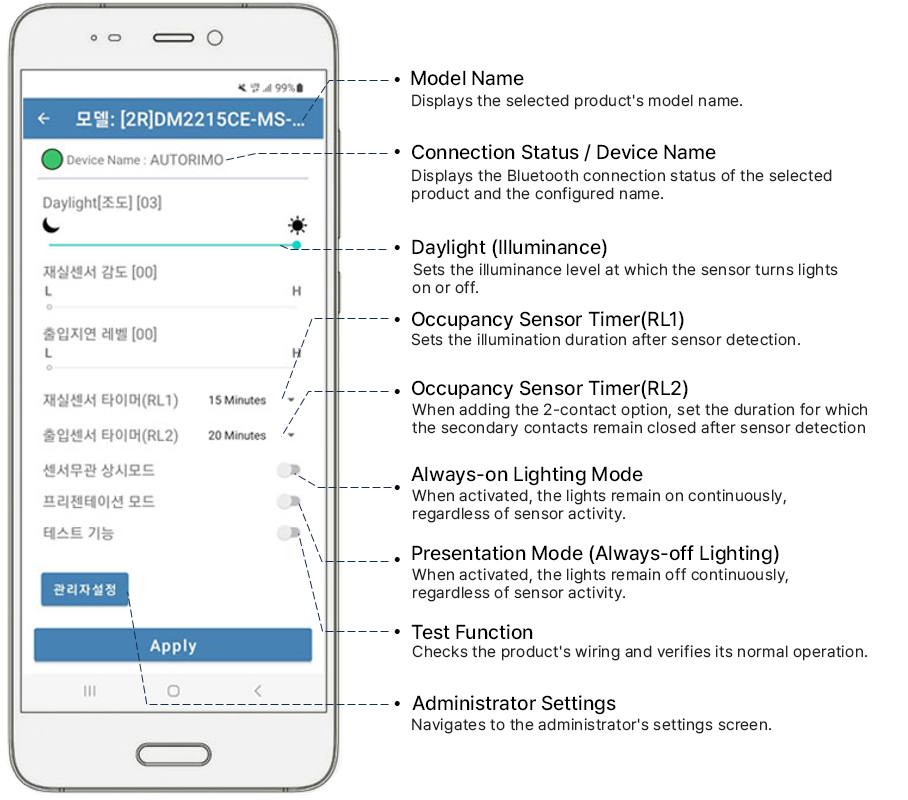

Control Application Functions

Design Examples

Front Door

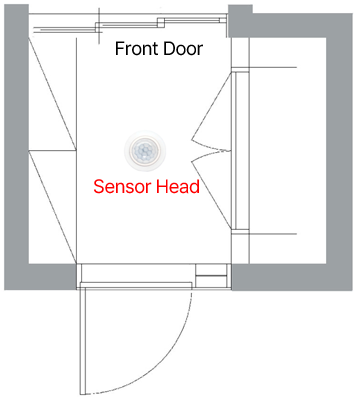

By installing the sensor in the central area of the entrance, the LED lighting can be automatically turned on and off. Additionally, regular users can easily change the time or settings using the application. By securing the sensor head with front and back fixed rings, exposure is minimized, allowing for a neat maintenance of the interior decor.
Small meeting room

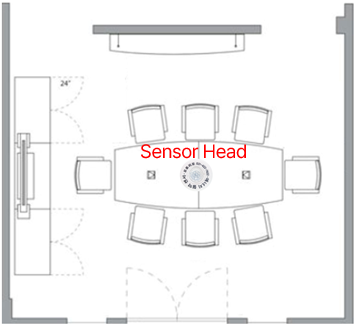

Suitable for small meeting rooms of approximately 5m x 5m, it can be centrally installed to control LED lighting, allowing users to easily adjust time and settings using the application. With presentation mode or Always-on Lighting Mode, it is convenient for adjusting lighting brightness during meetings, and when using 2 contacts, it can display external usage status.

Wiring Diagram

Specifications

Input Voltage	220V, 50 / 60Hz
Certification standard	220V 15A(RL1) / 4A(RL2)
Daylight Setting	Sunny, Partly Cloudy, Mostly Cloudy, Night
Function Setting Method	Configure through smartphone application (Only supports Android OS)
Occupancy Sensor Time Delay (RL1)	5s, 15s, 30s, 1m, 3m, 5m, 10m, 15m, 20m, 30m, 1hr, 2hr
Occupancy Sensor Time Delay (RL2)	5s, 15s, 30s, 1m, 3m, 5m, 10m, 15m, 20m, 30m, 1hr, 2hr
PIR	4 Elements
Field Of View	Linear Detection Range 10m, Horizontal Detection Distance ⌀4~5m
Size	Sensor head (L33H) : ⌀27mm, 33mm(H), support 47mm
Size	Controller : 67(W) X 30(H) X 113(L) mm
