Smart Embedded Ceiling Sensor AIM210P / AIM210PIO

Product Description

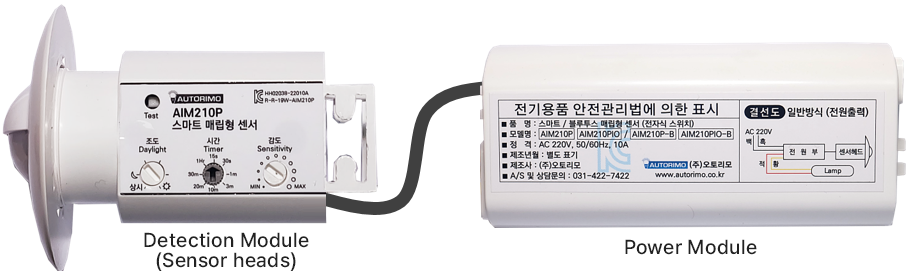

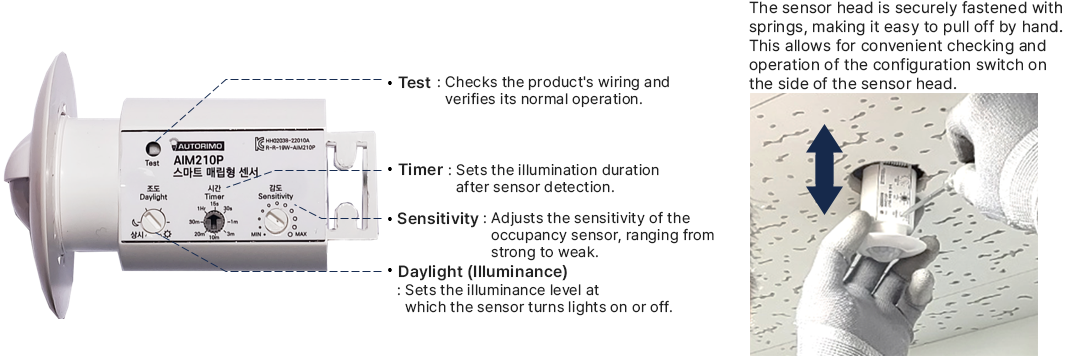

• This product is a sensor installed by embedding it in the ceiling, with the control unit located on the side of the sensor head. After pulling out the sensor, you can easily adjust sensor sensitivity, illumination maintenance time, and operational brightness using the volume switch on the side.

Expand functionality by adding sensor heads

• By adding sensor heads, you can expand the detection range using a multi-head approach or apply an access verification method. In particular, the access verification method is useful when you need to install indicator lights for confirming usage within narrow spaces.

Installation Method

• By inserting the power module and sensor head into the same hole simultaneously, it minimizes damage to the ceiling finish material and makes the installation process convenient. (Hole Size: Φ45mm)

Functions

Application Areas

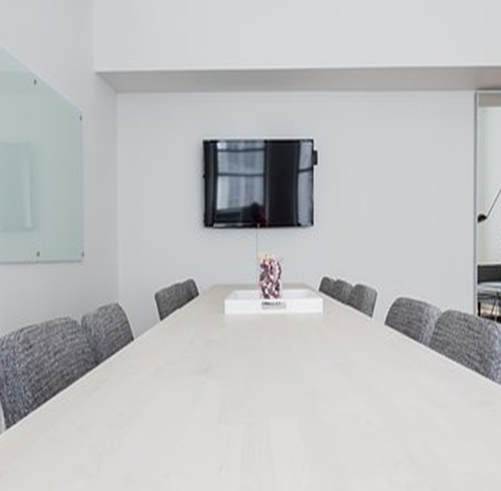

• Common Areas in Buildings



  Consider installing sensors in commonly used areas such as restrooms and meeting rooms within a building, where management can become lax. If the existing sensors are outdated, they can be replaced with ceiling embedded sensors featuring a simple design. With Autorimo's high-sensitivity sensor technology, lights quickly illuminate upon user entry and automatically turn off after use, eliminating the need for administrators to manually switch lights.

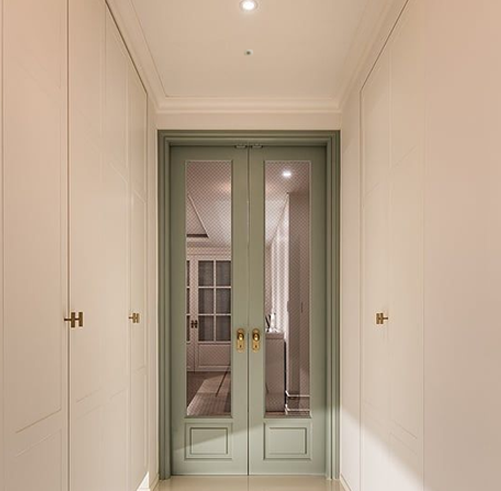

• Residential Facilities



  In various residential spaces like entryways and pantries, where usage time is not lengthy, interior lighting with our sensors can automatically turn on or off while maintaining the same aesthetics. This not only saves on electricity bills but also enhances convenience in daily life. Additionally, in retirement communities or households with elderly or young children, indirect lighting control in living rooms or kitchens can contribute to nighttime safety and psychological well-being.

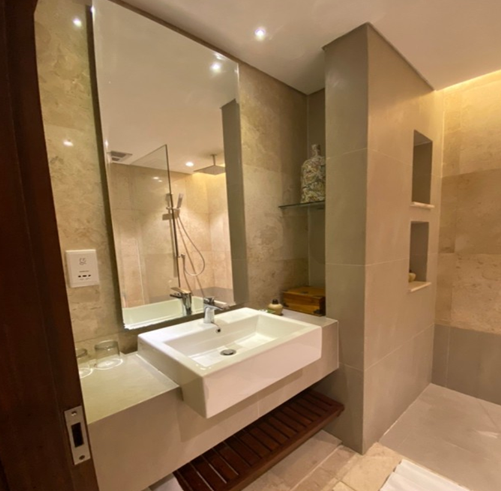

• Hotels & Resorts



  Guests staying at hotels and resorts no longer need to search for light switches when they need to use the restroom during the night. Sensors automatically turn on the lights, providing guests with a convenient experience and leaving them with the impression that this hotel or resort is modern and forward-thinking. Additionally, if lighting in blind spots such as restrooms and balconies remains on continuously while guests are in their rooms, automatic shutoff leads to immediate cost savings. The cost-saving effect is maximized as the number of rooms increases.

Installation Example

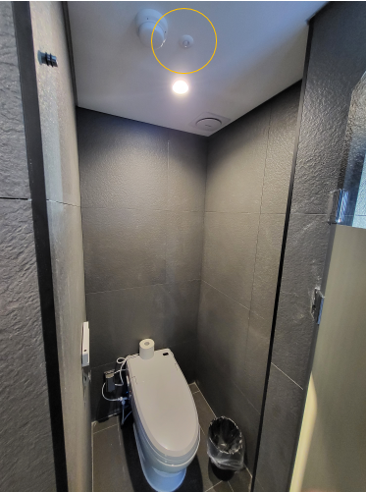

• The top of the toilet stalls

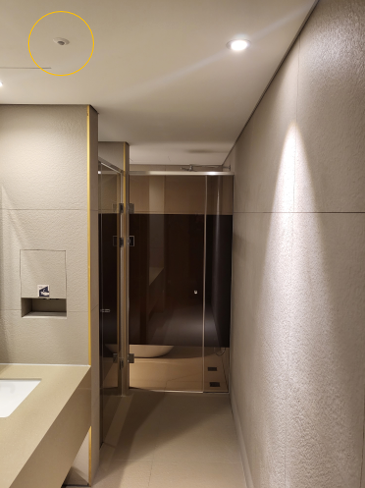

• A bathroom in a hotel room



Design Examples

• Front Door (Applicable Model: AIM210P)



  When installing, select the sensor location at a 1-meter distance from the front entrance door. If the front door is opened and used, use a sensor lens cover to prevent motion detection from the living room.

• Accessible Restroom Occupancy Indicator (Applicable Model: AIM210PIO)



  Install an entry sensor head at the entrance directly above, and place an occupancy sensor inside. Use a sensor lens cover in the direction of the entrance to prevent detection of movement outside the entrance and the door.

Field Of View

• When the L-type sensor is applied, it can detect up to a maximum radius of 4-5 meters at a height of 3 meters. The detection distance can be adjusted depending on the sensor lens type and may vary depending on the environment.

Wiring Diagram

Specifications
