Micom Occupancy Sensor DM2210MS / DM2215MS

•

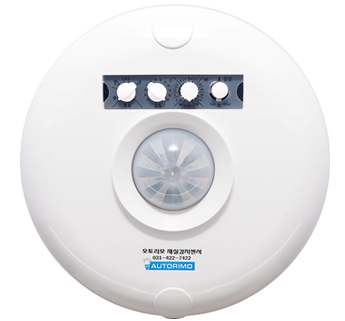

  DM2210MS (Basic Type)

•

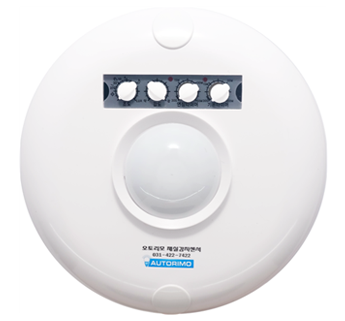

  DM2215MS (Wide-Angle Detection Type)

•

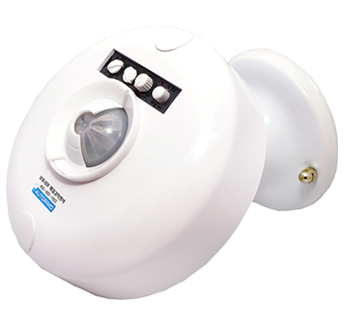

  DM2210MS Adjustable Angle Type (Option)

Product Description

• It controls lights and heating/cooling systems in places like bathrooms, warehouses, classrooms, research labs, and experimental labs. (For controlling heating/cooling systems, an Air-conditioner Auto Remote Control for the system is required.)
• Equipped with a high-sensitivity wide-angle sensor that detects subtle movements in real-time, automatically extending the operation.
• It has a large-capacity power switching capability with a safety certification specification of 220V 15A, ensuring durability over extended periods of use.
• A precision OP amp circuit is built-in, and it is equipped with a load switch capable of withstanding a momentary maximum of 40A.

Functions

• Daylight (Illuminance)

  •
    Day/Night operation on a clear day (Typically 400Lux or more)
  •
    Start operation on a cloudy day (Typically 30~10Lux)
  •
    Lighting in the evening (Typically 10~5Lux)
  •
    Lighting at night

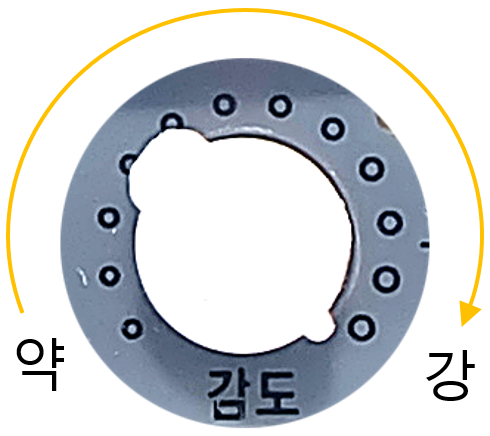

• Sensor Sensitivity


  Adjusts the sensitivity of the occupancy sensor, ranging from strong to weak.
  When turned to the right, the sensitivity increases, and the factory default setting is at maximum sensitivity.

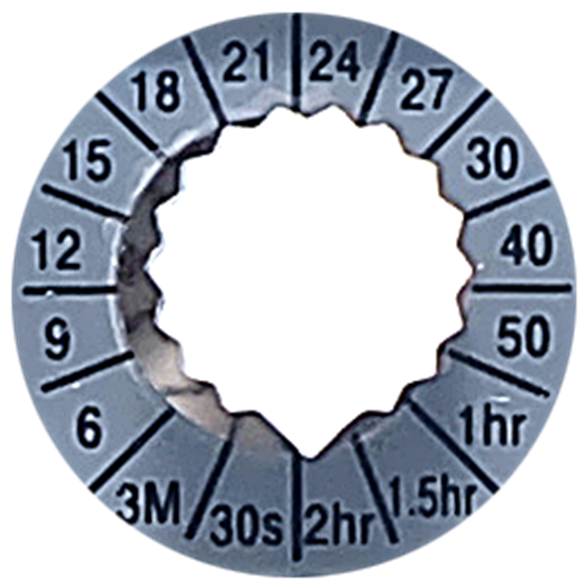

• Sensor Timer


  Sets the illumination duration after sensor detection.
  (30s, 3m, 6m, 9m, 12m, 15m, 18m, 21m, 24m, 27m, 30m, 40m, 50m, 1hr, 1hr30m, 2hr)

• Test

  Checks the product's wiring and verifies its normal operation.


  Normal: It turns off at the currently set timer designated time.

  When pressed once and released, the switch automatically recovers, and the lighting group controlled by the sensor is forcibly turned on for 10 seconds. After 10 seconds, the corresponding lighting group turns off, and the sensor mode is activated.

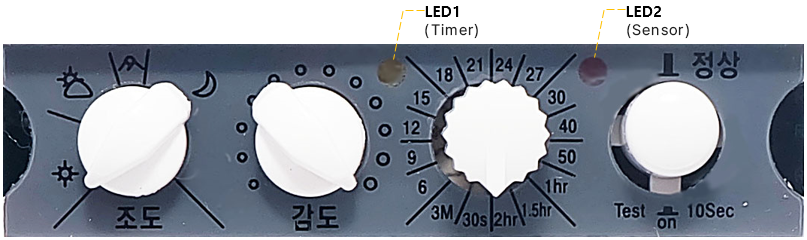

• LED display

  The operation status displayed by the LED is as following.

  operations	LED1 (Timer)	LED2 (Sensor)
  Detection	Flashing	Flashing
  Light on	Flashing at 1-second intervals	Illumination
  Standby	Light off	Illumination
  Test mode	Illuminates for 10 seconds and then turns off	Illuminates for 10 seconds and then turns off

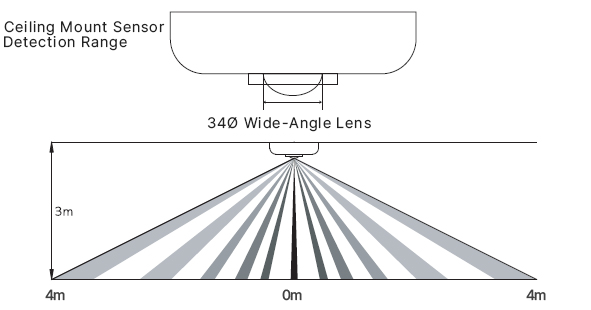

Detection Range

Design Examples

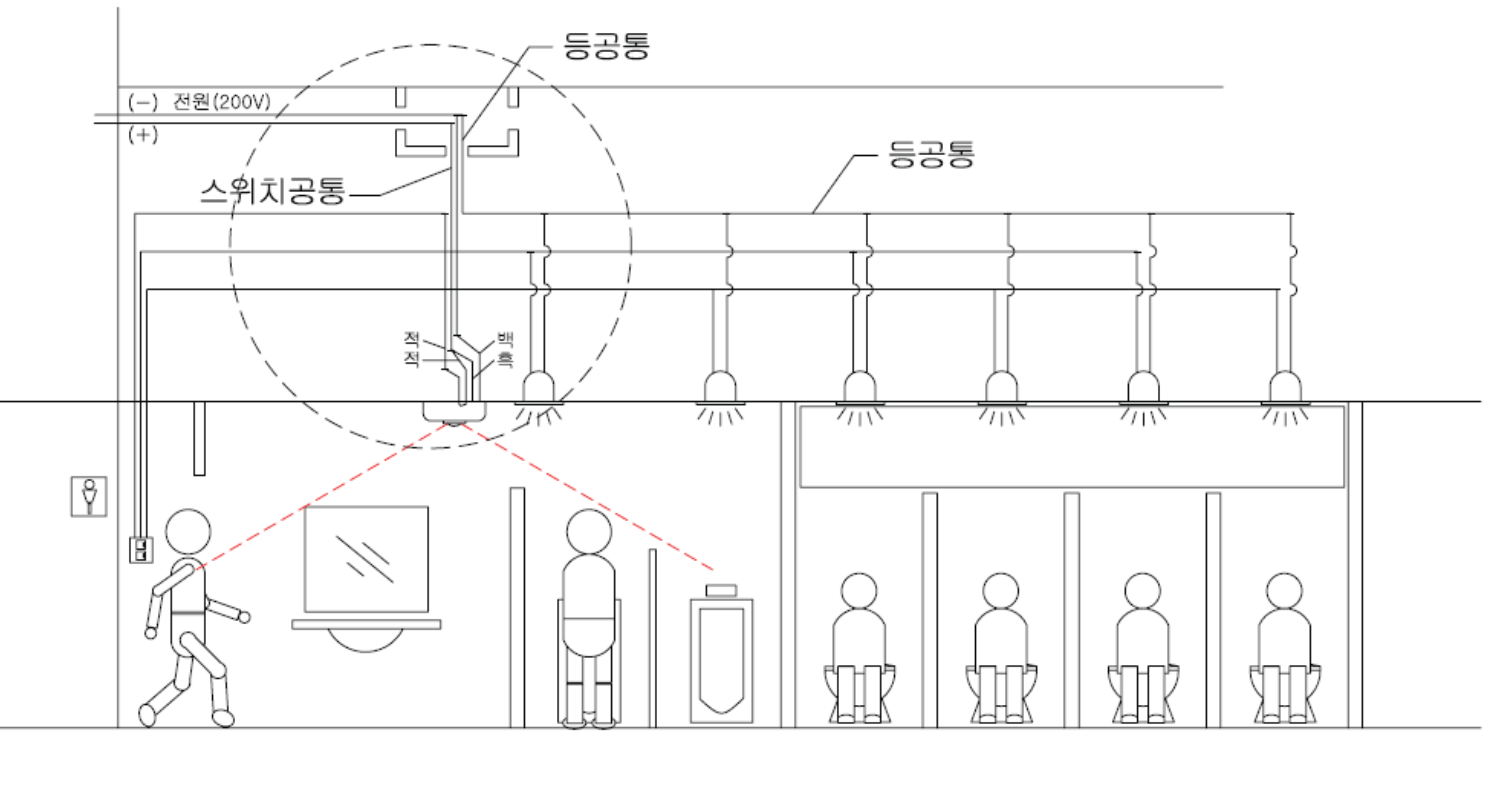

• Bathroom - one Micom occupancy sensor. Controls all the lights with one Micom occupancy sensor.

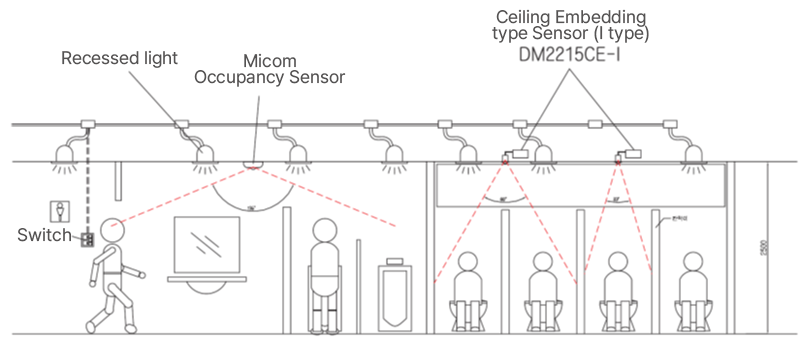

• Bathroom – one Micom occupancy sensor + Embedded Ceiling Sensor(I type)

  The main corridor light circuit is controlled by one Micom occupancy sensor, and the lights above toilet stalls are individually controlled using Embedded ceiling sensors.

Wiring Diagram

Specifications
