Embedded Ceiling Sensor

Micom Embedded Ceiling Sensor DM2215CE-MSW / DM2215CE-MS

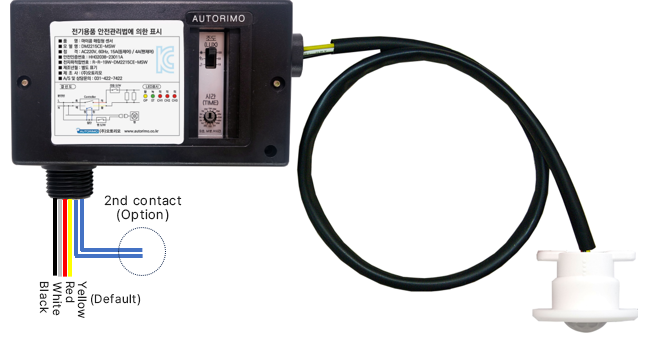

Dual Relay(2-contact) 15A/4A   DM2215CE-MSW

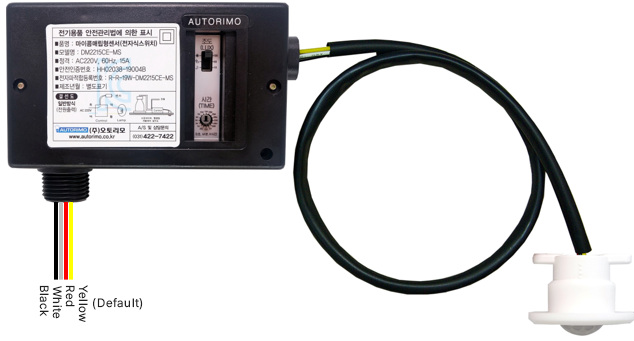

Single Relay(1-contact) 15A   DM2215CE-MS

Product Description

  • Installed in the ceiling, the sensor has minimal exposed areas, providing a clean and aesthetically pleasing appearance.
  • This product allows for long-term, high-capacity control and can be used for various purposes, from individual control of lights to group control of lights in large spaces.
  • The DM2215CE-MSW model is an upgraded version released in 2023. When needed, you can add a secondary contact, allowing the fan to be turned off by a secondary timer after the lights are turned off. Additionally, if there is no activity indoors during a specified period, the contact signal can be transmitted to IoT devices or PLC for utilization. (Optional)

User-configurable Sensor Heads

  • The sensor head of the Embedded Ceiling Sensor product line comes with the default L33H (L-type). The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.
  • ① Sensor Head Model Selection
  • ② Ceiling Mounting Options
  • ③ Detection Range Customization (L/S/I)

Selectable Options

L33H

For body lengths of 33mm, use with finishing materials such as hardboard or resin material with a thickness of 5mm or less.

L80H

A long-type head extended up to 80mm to allow installation even in cases of thick ceiling finishing materials.

Rubber Guide

Rubber Character (Presence/Absence) Selection

Front/Back Fixed Rings

Deco (optional)

L type – Wide Areas

Detection Angle 120°
Linear Detection Range max 10m
Horizontal Detection Distance (H:3m) max ⌀8~10m
Applications Meeting rooms, research labs, etc.
S type - Small Areas

Detection Angle 60°
Linear Detection Range max 8m
Horizontal Detection Distance (H:3m) max ⌀5~6m
Applications Small Areas like Restrooms
AIM810HD

Sensor head that can be easily buried and installed by using spring brackets after drilling a Φ45mm hole.

spring brackets

The L-type can block passage-side detection by adding a front shutter.

I type - individuals

Detection Angle 30°
Linear Detection Range max 8m
Horizontal Detection Distance (H:3m) max ⌀3~4m
Applications Confined spaces used by individuals

Functions

Design Examples

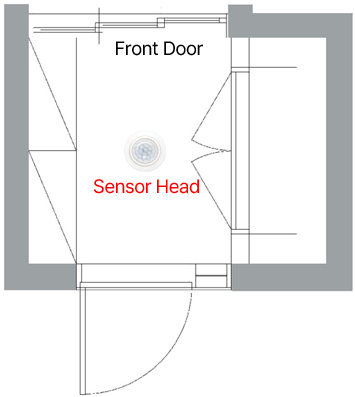

  • Front Door

    By installing the sensor in the central area of the entrance, the LED lighting can be automatically turned on and off. By securing the sensor head with front and back fixed rings, exposure is minimized, allowing for a neat maintenance of the interior decor.

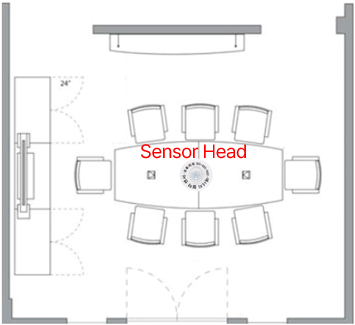

  • Small meeting room

    Suitable for small meeting rooms of approximately 5m x 5m, it can be centrally installed to control LED lighting.

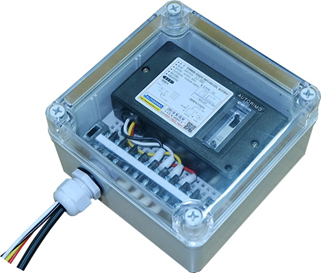

Outdoor Micom Embedded Ceiling Sensor DM2215CE-MS-OT

Product Description

  • When installing Micom Embedded Ceiling sensor outdoors, it can be manufactured for waterproofing and protection using a junction box. The distance between the main body and the sensor head can be extended using a separate extension connection cable (sold separately).
  • The angle-adjustable waterproof sensor head allows vertical and horizontal rotation, enabling effective detection of movement in the desired direction.

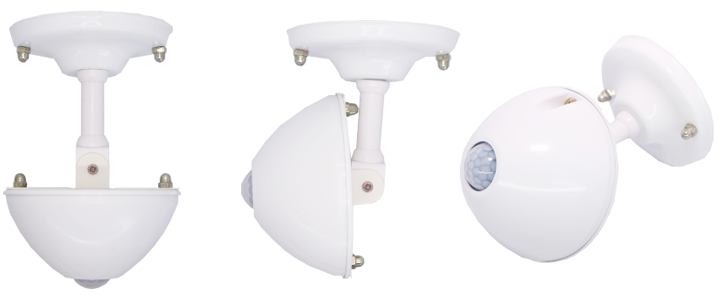

angle-adjustable waterproof sensor head W90-DA180

Wiring Diagram

DM2215CE-MS, DM2215CE-MSW - Single Relay(1-contact)
DM2215CE-MSW - Dual Relay(2-contact)

Specifications

Item DM2215CE-MSW DM2215CE-MS
Input Voltage 220V AC, 50 / 60Hz
Certification standard 220V 15A(1st Relay for Lights) / 4A(2nd Relay for fans) 220V 15A
Field Of View Linear Detection Range 10m, Horizontal Detection Distance ⌀4~5m

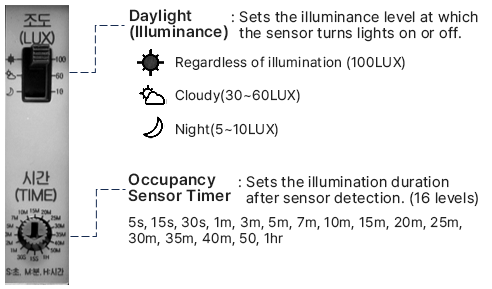

Daylight Setting Regardless of illumination (100LUX), Cloudy(30~60LUX), Night(5~10LUX) 3 levels
Occupancy Sensor Time Delay [1st Timer for Lights] 15s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr 15s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr
[2nd Timer for Fans] 1st Timer + α (Default : +5m)
Size Sensor head (L33H) : ⌀27mm, 33mm(H), support 47mm
Controller : 67(W) X 30(H) X 113(L) mm

※ The length between the sensor head and the controller is manufactured and released at a standard length of 50cm
