Multi-head Sensor System

Multi-head Sensor System

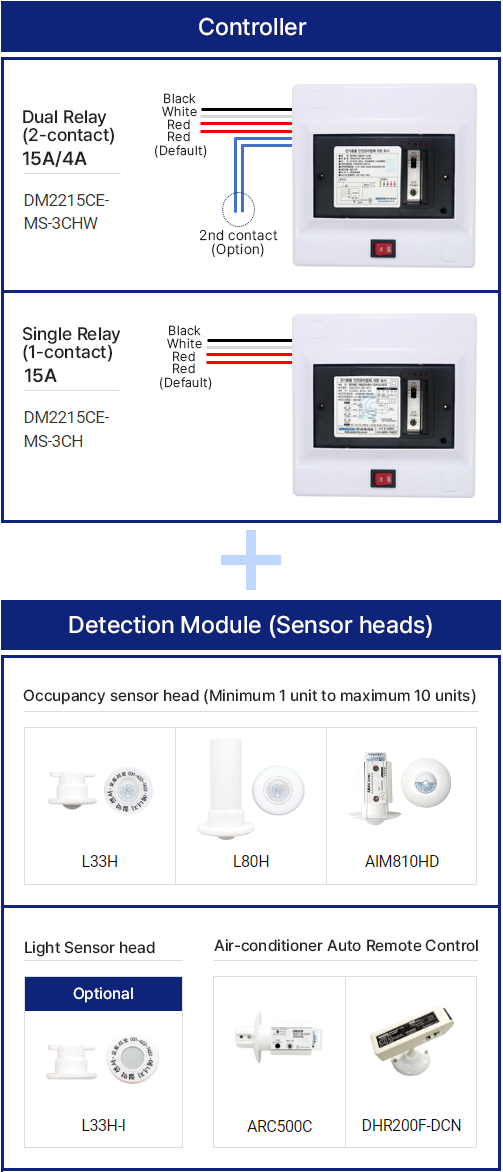

Controller
Dual Relay(2-contact) 15A/4A

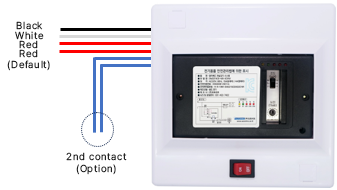

DM2215CE-MS-3CHW

Single Relay(1-contact) 15A

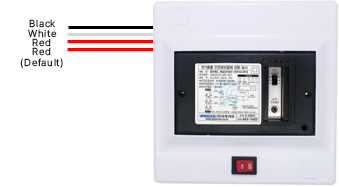

DM2215CE-MS-3CH

Detection Module (Sensor heads)
Occupancy sensor head (Minimum 1 unit to maximum 10 units)

  • L33H

  • L80H

  • AIM810HD

Light Sensor head

  • L33H-I

Air-conditioner Automatic Remote Control

  • ARC500C

  • DHR200F-DCN

※ The sensor control device is customizable for customers, with the option to choose between DM2215CE-MS-3CHW / DM2215CE-MS-3CH. It allows connecting the required number of occupancy sensors for a personalized system.
If you wish to illuminate only when it is dark based on external illuminance, you can add a Light Sensor head. Alternatively, if you want to increase energy efficiency by turning off both lights and the air conditioner when the occupancy sensor is absent, you can add and use a Air-conditioner Auto Remote Control.

Product Description

  • Our patented product, the controller, can connect multiple sensor heads, up to a maximum of 10, for each device, allowing detection of vulnerable areas in the building. It maximizes signal output between the sensor control device and sensor heads, enabling uninterrupted long-distance signal transmission (up to 100m) without attenuation.
  • The embedded sensor heads maintain the aesthetic appearance of the building without causing damage, providing a clean and simple installation process that reduces installation costs.
  • It not only controls lights but also allows control of Air-conditioners, minimizing energy loss by turning off both in the absence of occupancy.
  • The DM2215CE-MS-3CHW model, released in 2023 as an upgraded version, allows the addition of a secondary contact if needed. This can be utilized to turn off the ventilation fan by a secondary timer after the lights are turned off or to convey relay signals for inactivity detection during a certain elapsed time to IoT devices, PLCs, etc. (Option)

Functions

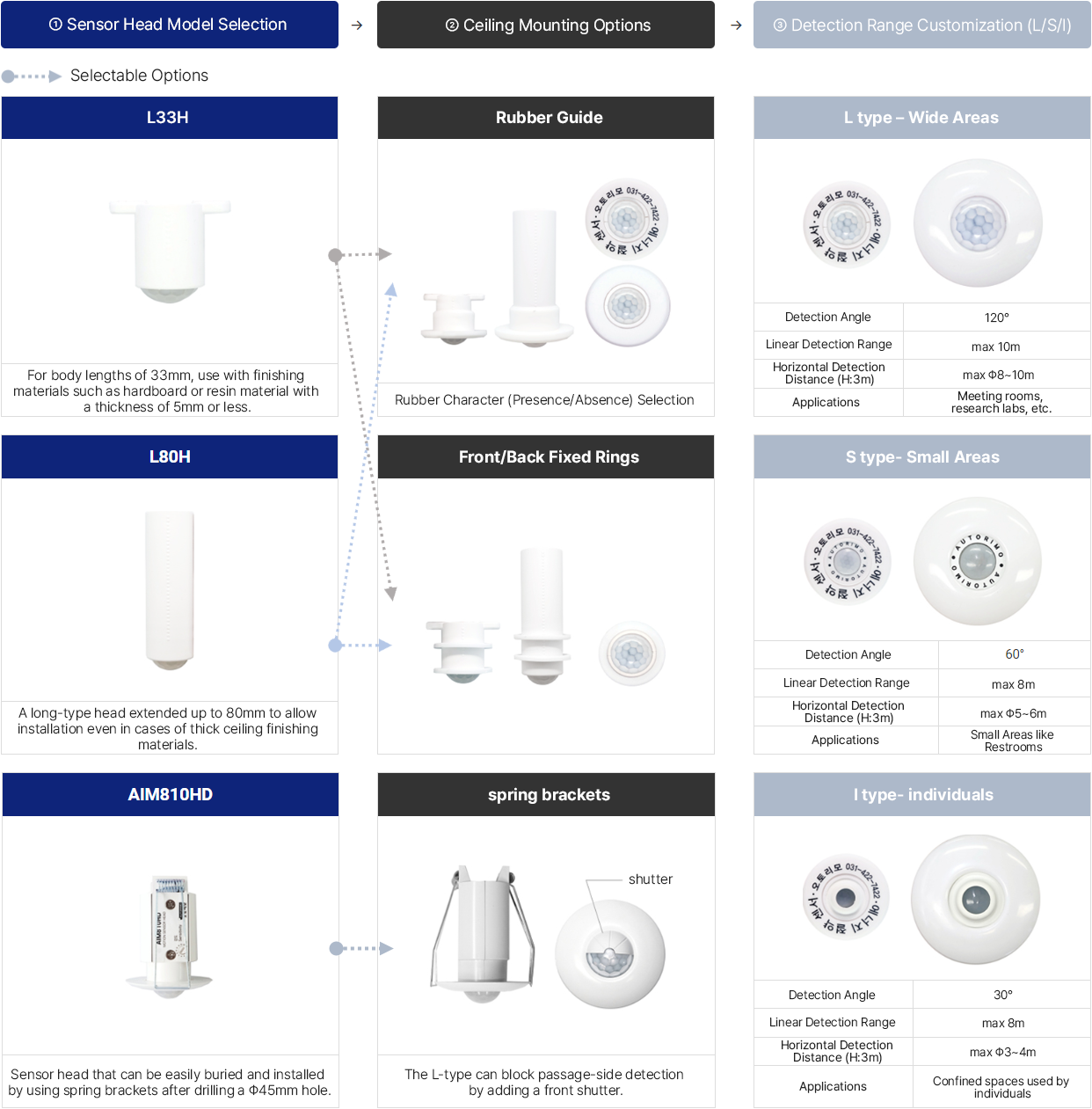

User-configurable Sensor Heads

  • The sensor heads come with the default L33H (L-type). The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.
  • ① Sensor Head Model Selection
  • ② Ceiling Mounting Options
  • ③ Detection Range Customization (L/S/I)

Selectable Options

L33H

For body lengths of 33mm, use with finishing materials such as hardboard or resin material with a thickness of 5mm or less.

Rubber Guide

Rubber Character (Presence/Absence) Selection

L type – Wide Areas

Detection Angle 120°
Linear Detection Range max 10m
Horizontal Detection Distance (H:3m) max ⌀8~10m
Applications Meeting rooms, research labs, etc.
L80H

A long-type head extended up to 80mm to allow installation even in cases of thick ceiling finishing materials.

Front/Back Fixed Rings

S type - Small Areas

Detection Angle 60°
Linear Detection Range max 8m
Horizontal Detection Distance (H:3m) max ⌀5~6m
Applications Small Areas like Restrooms

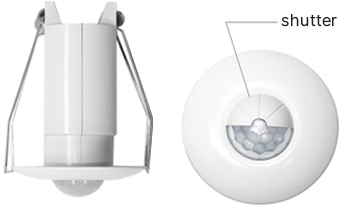

AIM810HD

Sensor head that can be easily buried and installed by using spring brackets after drilling a Φ45mm hole.

spring brackets

The L-type can block passage-side detection by adding a front shutter.

I type - individuals

Detection Angle 30°
Linear Detection Range max 8m
Horizontal Detection Distance (H:3m) max ⌀3~4m
Applications Confined spaces used by individuals

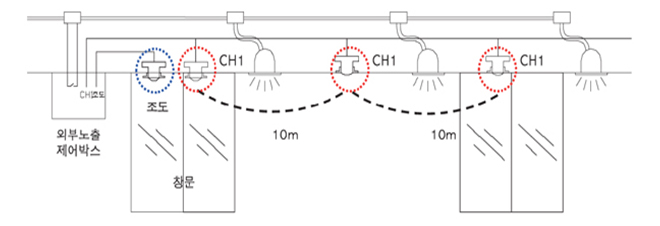

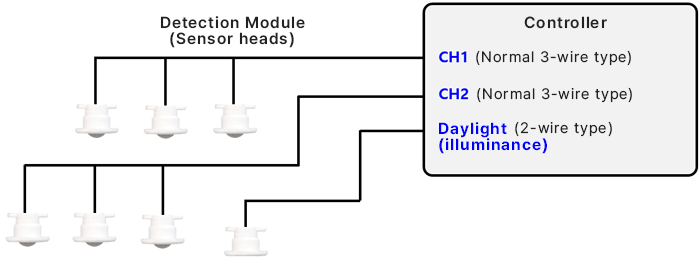

Sensor Head Expansion Configuration

  • Sensor heads can be connected like branches, and if a daylight(illuminance) function is required, a separate Light sensor head can be connected and used. It operates by using only one of the CH1, CH2, or CH3 circuits.

Design Examples

  • Corridors

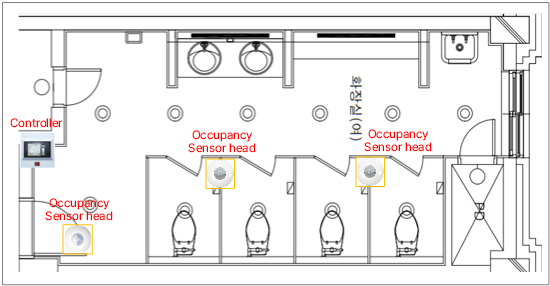

  • Restrooms
  • Lecture rooms

Installation Examples

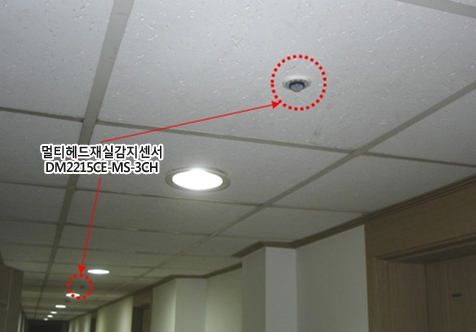

  • Corridors

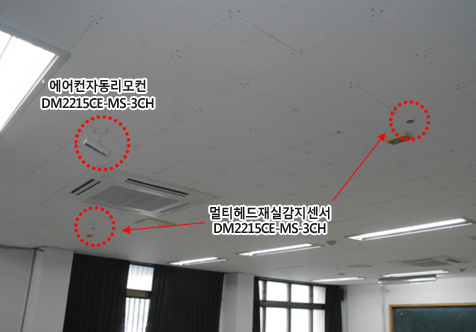

  • Lecture rooms

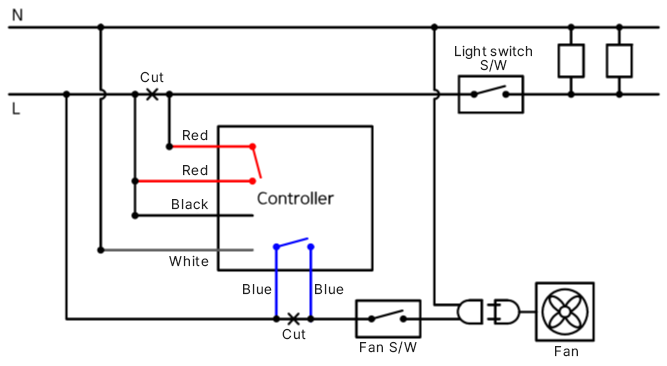

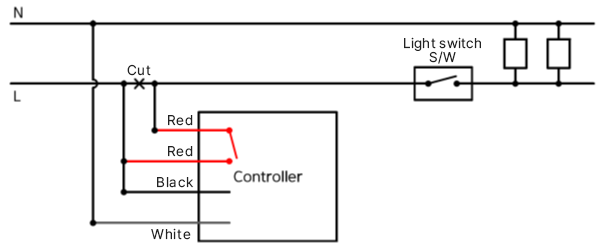

Wiring Diagram

DM2215CE-MS-3CHW - Dual Relay(2-contact)
DM2215CE-MS-3CH - Single Relay(1-contact)

Specifications

Item DM2215CE-MS-3CHW DM2215CE-MS-3CH
Input Voltage 220V, 50/60Hz
Power Consumption Less than 1W
Certification standard 220V 15A(RL1) / 4A(RL2) 220V, 15A
Contacts 2-contact 1-contact

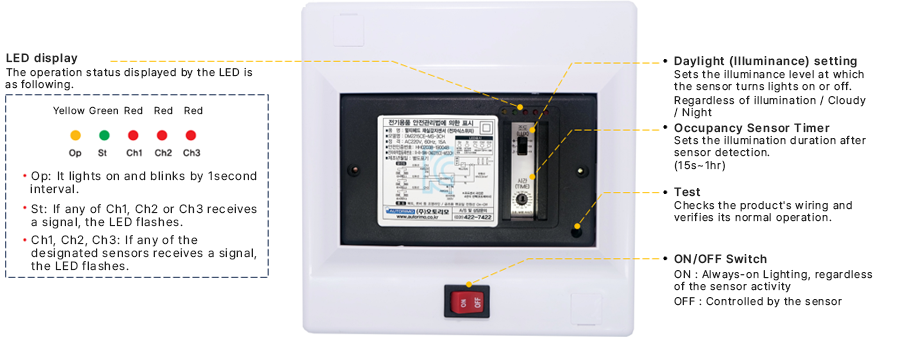

Control Modes Front control panels on controllers
Daylight Setting Regardless of illumination (100LUX), Cloudy(30~60LUX), Night(5~10LUX) 3 levels
Occupancy Sensor Time Delay (1st Timer for Lights) 1st Timer for Lights] 15s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr
Occupancy Sensor Time Delay (2nd Timer for Fans) [2nd Timer for Fans] 1st Timer + α (Default : +5m) -
PIR 4 Elements
Field Of View Linear Detection Range 10m, Horizontal Detection Distance ⌀4~5m
Test Function Function to check the wiring and status abnormalities of the product (After pressing the test button, it operates for 10 seconds)
Maximum number of sensor heads 10
Maximum Signal Cable Extension Distance 100m
Size 155mm x 155mm(Exterior Casing)
