Product We will work together for your successful business.

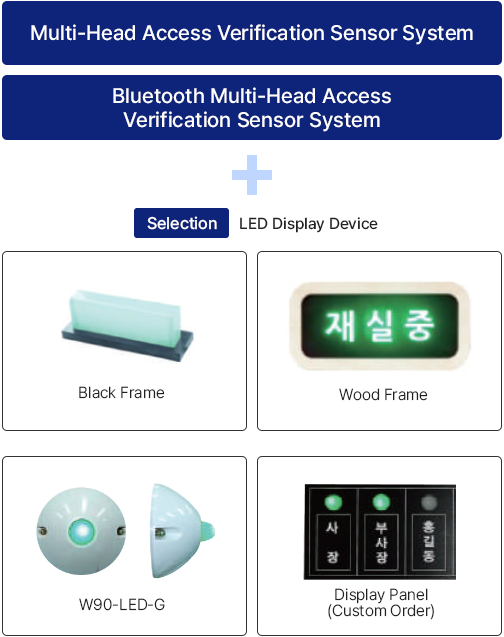

Multi-head Sensor System

Multi-head Sensor System for in-use indicator

Multi-Head Access Verification Sensor System
Bluetooth Multi-Head Access Verification Sensor System

Selection LED Display Device

Black Frame

Wood Frame

W90-LED-G

Display Panel (Custom Order)

Product Description

  • This product is an enhanced version of the multi-head access verification sensor system and bluetooth multi-head access verification sensor system with the addition of a re-entry indication function.
  • It serves the purpose of indicating the presence or absence of individuals using independent spaces such as heads of organizations or executives. The system informs others externally about the occupancy status, allowing people who need to visit the designated space to easily check whether the occupant is present or not through the LED display device. Additionally, it has the capability to control lights and air conditioning, enabling simultaneous shutdown in the absence of individuals for energy conservation.

LED Display Device

  • Black Frame (116Ｘ36Ｘ39mm)
    The black frame with a white front cover illuminates in green (color selection available) when occupied.

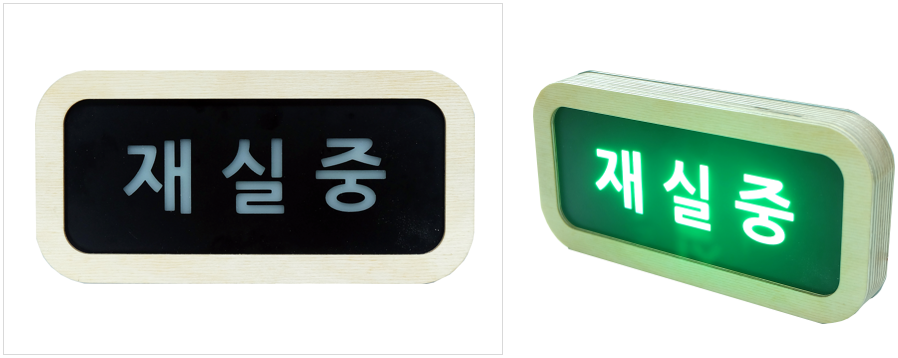

  • Wood Frame (216Ｘ105ｘ29mm)　
    Inside the wood frame, the text portion illuminates in green when occupied, displaying the text "Occupied" by default, which can be changed if necessary.
  • W90-LED-G (Ø90mm)　
    In the center of the circular bracket, an LED lamp is embedded, illuminating in green (color selection available) when occupied.

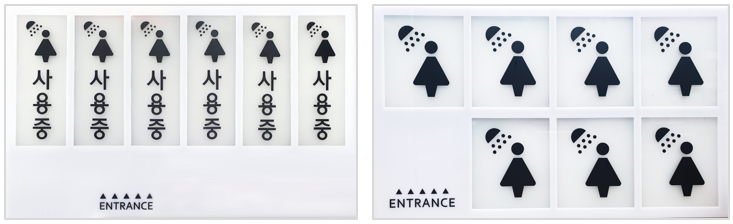

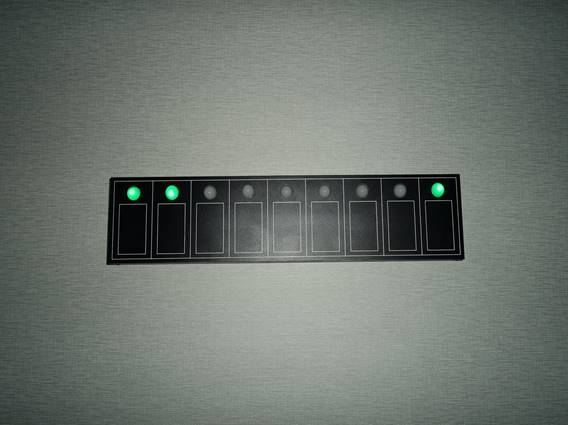

  • Display Panel (Custom Order)
    For simultaneous indication of occupancy status in multiple spaces, it can be manufactured in panel form for attachment to the wall.

Wiring Diagram

DM2215CE-MS-3CHIOW, DM2215CE-MS-3CHIOB – Dual Relay(2-contact)
DM2215CE-MS-3CH/IO – Single Relay(1-contact)

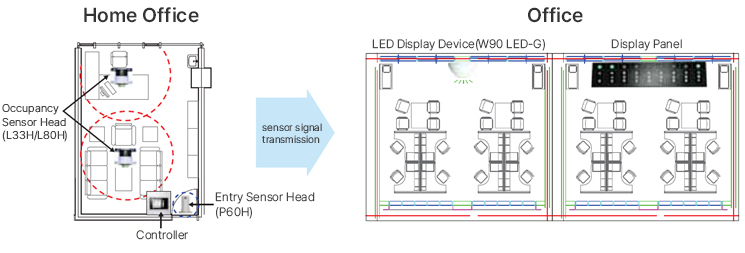

Configuration Examples

1) Install an entry sensor head at the entrance of the home office and an occupancy sensor head indoors. Also, install a led display device outside the home office.
2) The led display device, as well as the lights and air conditioner, turn on upon entry and turn off if no presence is detected within the set illumination retention time after leaving.
3) If someone enters or leaves while the room is occupied, the led display device initially turns off. When the occupancy sensor head detects activity again, the display device turns back on to indicate occupancy.

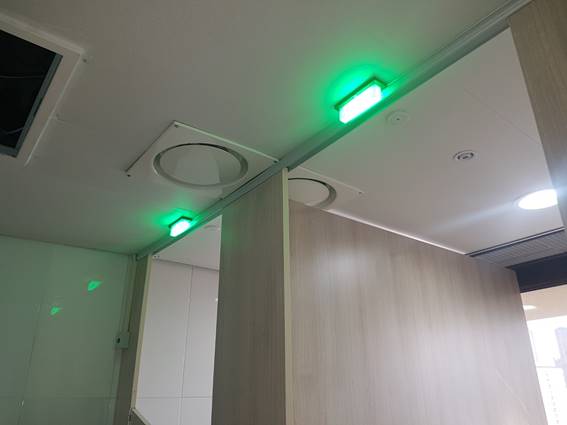

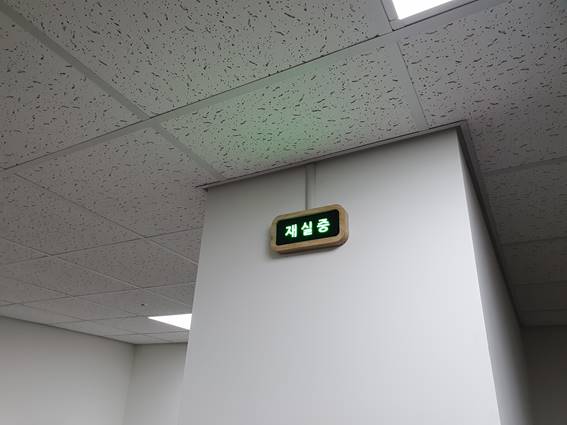

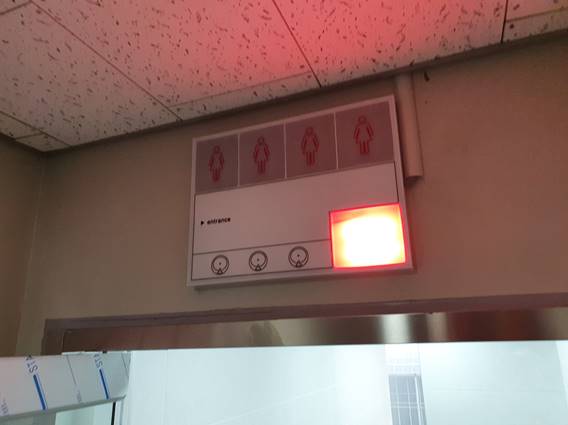

Installation Examples

Specifications

Item DM2215CE-MS-3CHIOW DM2215CE-MS-3CH/IO DM2215CE-MS-3CHIOB
Input Voltage 220V, 50/60Hz
Power Consumption Less than 1W
Certification standard 220V 15A(RL1) / 4A(RL2) 220V, 15A 220V 15A(RL1) / 4A(RL2)
Contacts 2-contact 1-contact 2-contact
Control Modes Front control panels on controllers Configure through smartphone application (Only supports Android OS)
Daylight Setting Regardless of illumination (100LUX), Cloudy(30~60LUX), Night(5~10LUX) 3 levels -
Entry Sensor Time Delay 5s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr 5s, 15s, 30s, 1m, 3m, 5m, 10m, 15m, 20m, 30m, 1hr, 2hr
Occupancy Sensor Time Delay 40m 40m 5s, 15s, 30s, 1m, 3m, 5m, 10m, 15m, 20m, 30m, 1hr, 2hr
Test Function Function to check the wiring and status abnormalities of the product (After pressing the test button, it operates for 10 seconds)
Maximum number of sensor heads 10
Maximum Signal Cable Extension Distance 100m
Size 155mm x 155mm(Exterior Casing)
