Bluetooth Multi-Head Access Verification Sensor SystemDM2215CE-MS-3CHIOB

Product Description

• This product is designed for a multi-head access verification sensor system with a wireless configuration, making it suitable for situations where rapid extinguishing is required after leaving or in areas with minimal indoor movement. Utilizing the entry sensor head, when a user is recognized as being in the occupancy state upon entering, the illumination is maintained even with little or no movement. After leaving, rapid extinguishing is possible based on the entry sensor head timer setting.
• Users can install a sensor control application on their smartphones, establish a connection with the sensors via Bluetooth communication, and use the installed application to configure functions such as timers and daylight settings. This eliminates the need to physically reach high-ceiling-mounted sensors to make adjustments, enhancing convenience and reliability in management.
• If needed, you can add a secondary contact, allowing the ventilation fan to be turned off by a secondary timer after the lights are turned off. Alternatively, you can utilize the relay signal for inactivity detection during a specified elapsed time, transmitting it to IoT devices, PLCs, and more. (Optional)

Functions

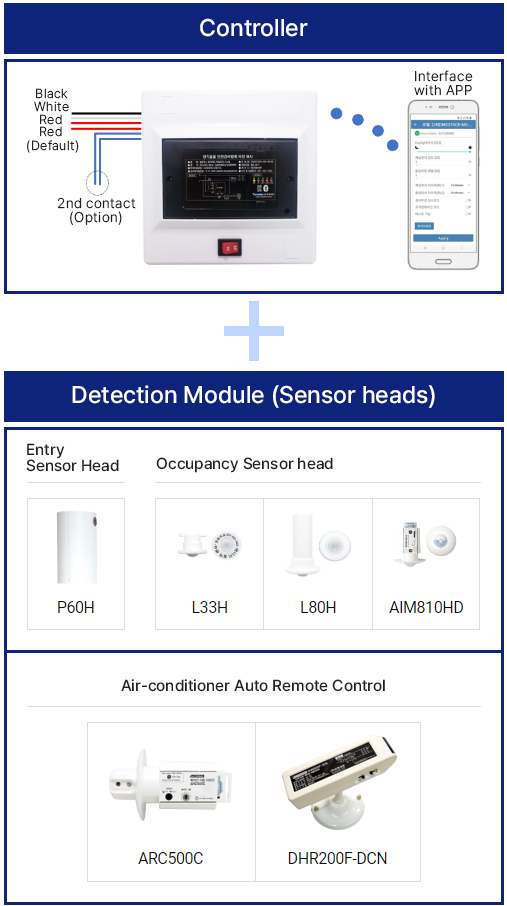

Detection Module (Sensor heads)

Entry Sensor Head

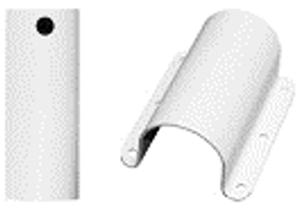

• Install at the upper/direct top of the entrance to confirm entry and exit. If installation at the top is challenging, you can use the bracket (P60H-WB) designed for entry sensor heads, making it easy to install on doors or walls.

Occupancy Sensor head

• Install inside the detection space to confirm the presence or absence of occupancy. It comes with the standard provision of AIM810HD (L-type).
• The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.

• ① Sensor Head Model Selection
• ② Ceiling Mounting Options
• ③ Detection Range Customization (L/S/I)

Design Examples

• Install an entry sensor head at the entrance and an occupancy sensor head inside, burying them.
• If it is necessary to turn off the air conditioner along with the lighting fixtures when absent, you can link it by adding the air-conditioner automatic remote control (ARC500C) or connect an indication lamp externally to display the occupancy status.

• Lecture rooms



• Manager's Office



Wiring Diagram

Specifications
