Multi-head Sensor System

Bluetooth Multi-head Sensor System

Multi-head Sensor System

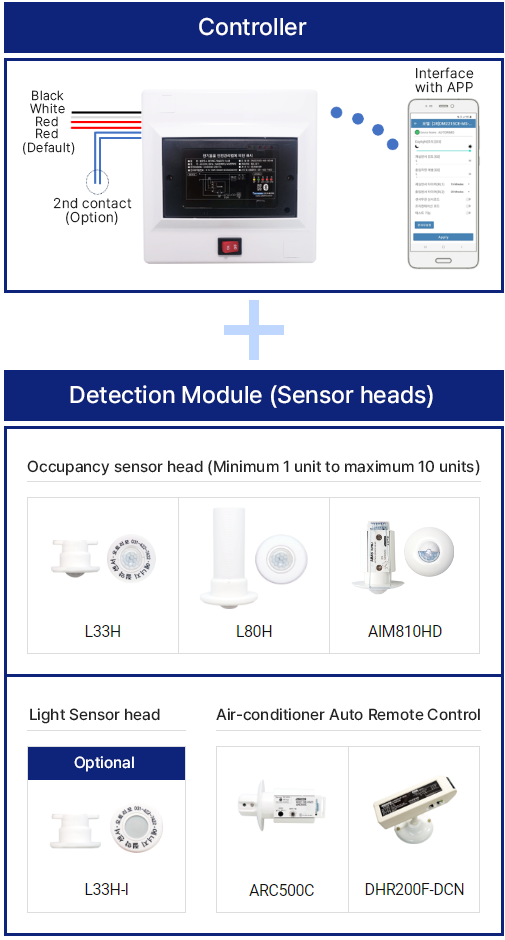

Bluetooth Multi-head Sensor System DM2215CE-MS-3CHB

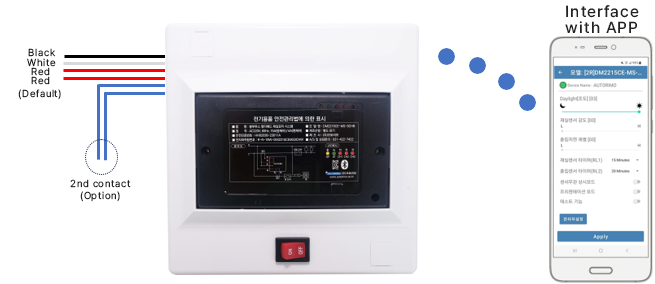

Controller

Detection Module (Sensor heads)

Occupancy sensor head (Minimum 1 unit to maximum 10 units)

L33H
L80H
AIM810HD

Light Sensor head

Optional
L33H-I

Air-conditioner Automatic Remote Control

ARC500C
DHR200F-DCN

Product Description

This product features a wireless configuration for a multi-head sensor system that can connect multiple sensor heads.
Users can install a sensor control application on their smartphones, establish a connection with the sensors via Bluetooth communication, and use the installed application to configure functions such as timers and daylight settings. This eliminates the need to physically reach high-ceiling-mounted sensors to make adjustments, enhancing convenience and reliability in management.
If needed, you can add a secondary contact, allowing the ventilation fan to be turned off by a secondary timer after the lights are turned off. Alternatively, you can utilize the relay signal for inactivity detection during a specified elapsed time, transmitting it to IoT devices, PLCs, and more. (Optional)

Functions

User-configurable Sensor Heads

The sensor heads come with the default L33H (L-type). The sensor head type or detection range can be modified for use, considering factors such as the thickness or material of the ceiling finish, or depending on customer requirements.

① Sensor Head Model Selection
② Ceiling Mounting Options
③ Detection Range Customization (L/S/I)

Selectable Options

L33H

For body lengths of 33mm, use with finishing materials such as hardboard or resin material with a thickness of 5mm or less.

Rubber Guide

Rubber Character (Presence/Absence) Selection

L type – Wide Areas

Detection Angle	120°
Linear Detection Range	max 10m
Horizontal Detection Distance (H:3m)	max ⌀8~10m
Applications	Meeting rooms, research labs, etc.

L80H

A long-type head extended up to 80mm to allow installation even in cases of thick ceiling finishing materials.

Front/Back Fixed Rings

S type - Small Areas

Detection Angle	60°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀5~6m
Applications	Small Areas like Restrooms

AIM810HD

Sensor head that can be easily buried and installed by using spring brackets after drilling a Φ45mm hole.

spring brackets

The L-type can block passage-side detection by adding a front shutter.

I type - individuals

Detection Angle	30°
Linear Detection Range	max 8m
Horizontal Detection Distance (H:3m)	max ⌀3~4m
Applications	Confined spaces used by individuals

Design Examples

Connecting multiple sensor heads to a single sensor control device makes it cost-effective, easy to install, and ensures comprehensive detection without blind spots.
It can also be integrated with air-conditioner auto remote control.

Restrooms
Lecture rooms

Wiring Diagram

Specifications

Item	DM2215CE-MS-3CHB
Input Voltage	220V, 50 / 60Hz
Power Consumption	Less than 1W
Certification standard	220V 15A(RL1) / 4A(RL2)
Contacts	2-contact
Control Modes	Configure through smartphone application (Only supports Android OS)
Daylight Setting	Regardless of illumination (100LUX), Cloudy(30~60LUX), Night(5~10LUX) 3 levels
Occupancy Sensor Time Delay (1st Timer for Lights)	5s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr 12levels
Occupancy Sensor Time Delay (2nd Timer for Fans)	5s, 30s, 1m, 2m 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 35m, 40m, 50m, 1hr 12levels
PIR	4 Elements
Field Of View	Linear Detection Range 10m, Horizontal Detection Distance ⌀4~5m
Test Function	Function to check the wiring and status abnormalities of the product (After pressing the test button, it operates for 10 seconds)
Maximum number of sensor heads	10
Maximum Signal Cable Extension Distance	100m
Size	155mm x 155mm(Exterior Casing)
