Autorimo

DM2210MS / DM2215MS / DM2215CE-MS-3CH /
DM2215CE-MS-3CH/IO etc.

When the room is unoccupied, if the air conditioner continues to operate, the occupancy sensor automatically sends a shutdown signal to the air-conditioner auto remote control, which then turns off the power to the air conditioner.
This function is compatible with most domestically produced air conditioners such as Samsung and LG.

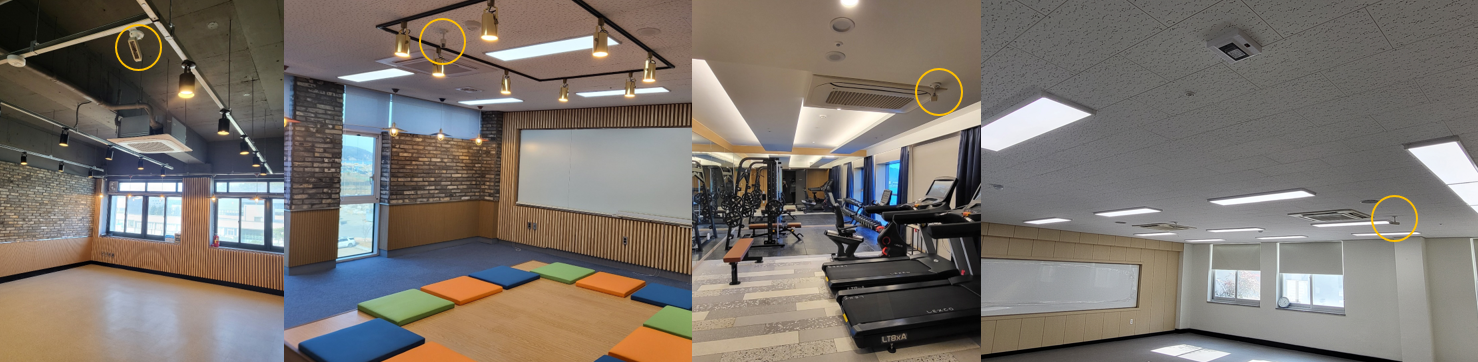

It can be applied to independent spaces such as executive offices, conference rooms, and reception areas in banks, companies, and public institutions.

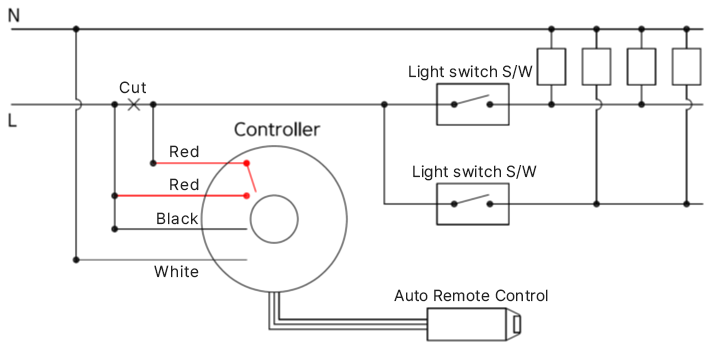

The basic installation plan involves integrating the Multi-Head Access Verification Sensor System with the Air Conditioner (A/C) Auto Remote Control to manage the lights and A/C in a research laboratory.
Entry sensor heads are embedded at the entrance, and occupancy sensor heads are installed indoors. The A/C auto remote control is placed within the signal coverage area near the A/C unit.
When the Multi-Head Access Verification Sensor System detects no one in the laboratory, it sends a blocking signal to the A/C auto remote control.
The A/C auto remote control emits an OFF signal to the A/C infrared receiver, simultaneously turning off the lights and the power.

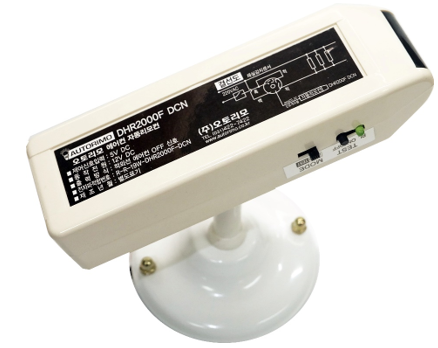

Item	DHR2000F-DCN
Power Input	12V DC
Control Input	5V DC
Output Signal	Infrared Auto OFF Signal According to Air Conditioner Model
Control Method	Signal Generation for OFF in Absence
Size	47(W) X 31(H) X 143(L) mm
